- Size: 3.550*1.370*4.650
- Place of Origin: linyi,shandong
- Brand Name: JINLUN
- Model Number: SM4*8RY-500
- Weight: 500.000 kg
- :
- :
- :
- :
- :
- :
- :

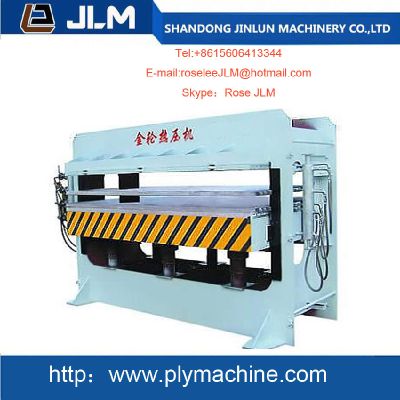

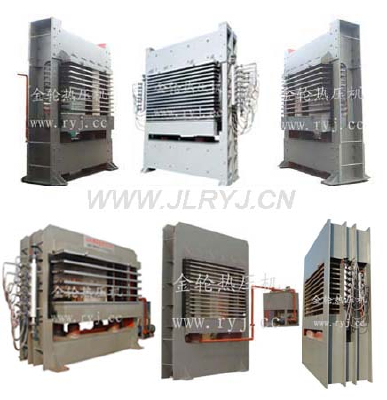

structural Features of 800-3200T Hot Press Machine
1. Heating Platen
The heating platen is made from a carbon steel plate with drilled holes for strength and durability. A working table of 2700mm*1370mm allows users to easily operate the wood working machine.
2. Heating System
The hot press comes with a special heating system which employs a heat transference oil boiler that features a counter current flow and a high temperature, and lowers the system pressure to meet safety requirements. The heat system's closed circulation transfers energy via liquid, thus reducing heat loss and saving overall energy.
3. Hydraulic System
This type of hot press is a hydraulic plywood press with adjustable hydraulic pressure.
4. Oil Cylinder
The oil cylinder is made with high precision tools, and sealants prevent oil from leaking.
5. Control System
Our hot press is equipped with a microcomputer control system for both manual and automatic control. With a simple push of a button you can control a whole set of processes including pressing plate ascending, closing, pressure adding, pressure maintaining, timing and pressing plate descending.
- Size: 3.550*1.370*4.650
- Place of Origin: linyi,shandong
- Brand Name: JINLUN
- Model Number: SM4*8RY-500
- Weight: 500.000 kg
- :
- :
- :
- :
- :
- :
- :
Technical Parameters of 800-3200T Hot Press Machine
Model | BY22-4 *8/80-15 |
Plunger cylinder quantity and diameter | 4pcs; 320mm |
Cylinder stroke | 1050mm |
No-load closing time | About 34s |
Hydraulic system | Manual and automatic control (with international warranty service) |
Proof pressure | 25MPa |
Main motor power | 11Kw |
Pressing motor power | 7.5Kw |
Main oil pump | 2 Shanghai Airlines 250 oil pumps |
Pressing oil pump | 25ml/rev |
Perforated plate size | 2700 *1370 *52mm (CE Authentication) |
Place of origin of perforated plate | Kunshan, China |
Interlayer spacing | 70mm |
